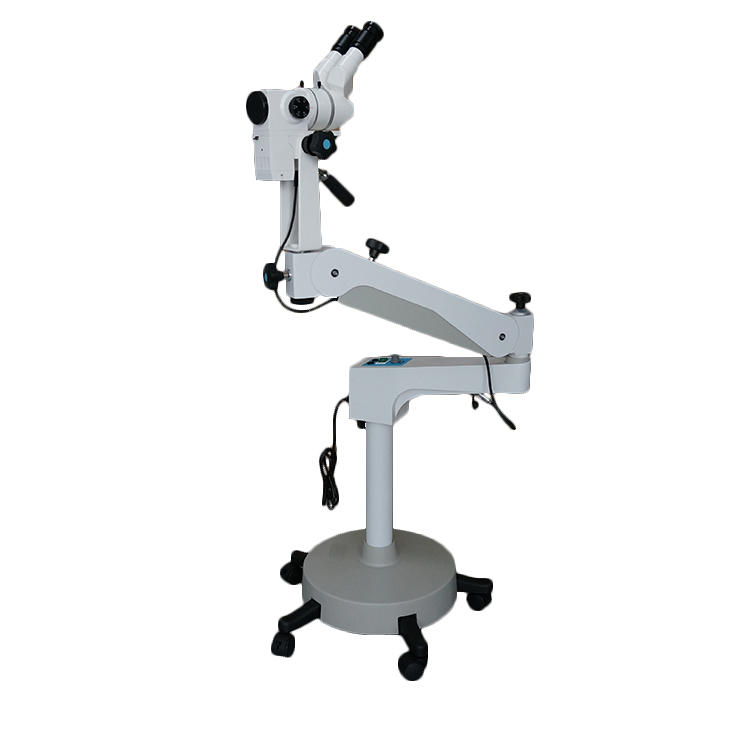

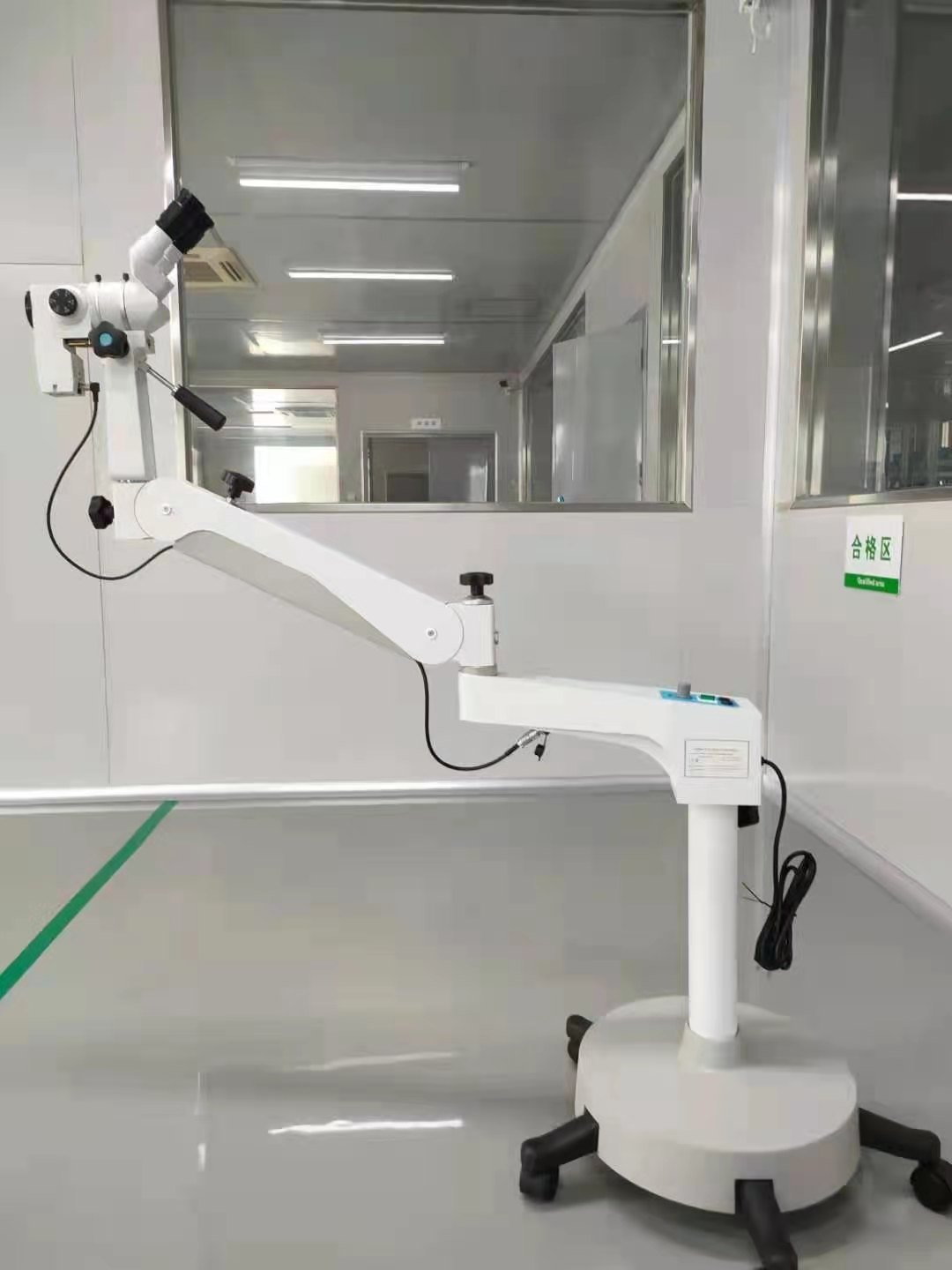

Colpo-F10 Plus Medical Optical Colposcope Gynecology Microscope
SPECIFICATIONS
MICROSCOPE

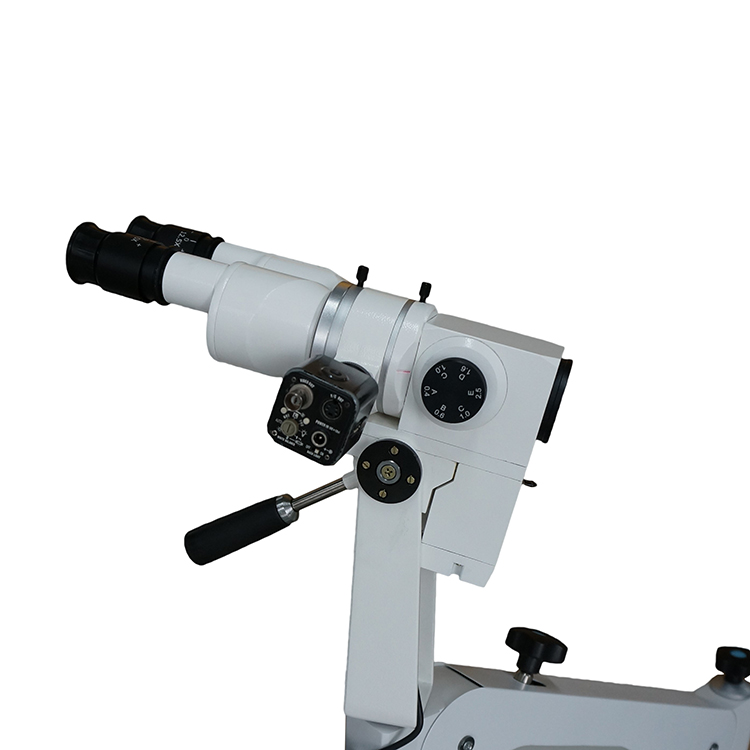

Binoculars
Straight f’=160 mm
Objective
f’=300 mm
Eyepiece
12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
Diopter adjustment
-5D to + 5D
Magnification changer
5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
Total magnifications
2.8x,4x,7x,11.5x, 17x
Visual field
80 mm-12.5 mm
Interpupillary distance
55 mm to 75 mm
Focusing
Micro-range of 40mm Manual
Working distance
295 mm
ILLUMINATION
Type
Coaxial illumination by optical light-guide system
Cold light source
LED lamp, 3V/10W
Illumination control
3steps
Field of illumination
65 mm
Power supply
AC 90V-240V
Light intensity
30000 LUX
Filter
Green
ARM, STAND
Type
Pantographic arm, floor stand 1040mm
Rotation angle
270°
Elevation stroke
350 mm
Height
1000-1350 mm
Base size
600mm
Weight
38kgs
ACCESSORIES
Binoculars
45°inclined binoculars f’=125 mm
Objective
f’=250mm,400mm
Beam splitter
Dismountable
Adaptor for CCD
With iris diaphragm, f’=65 mm
NOTE:Specifications subject to change without notice
